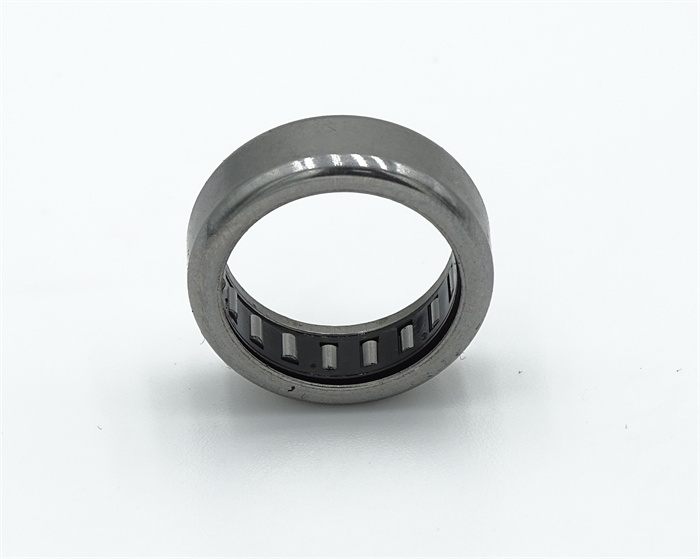

The outer ring of drawn cup needle roller breaking is punched with the high-quality steel sheet.The outer ring has thin wall.The drawn cup needle roller bearing has the characteristics of small radial section area,large load carrying capacity less inertia and economic manufacture.lt is suitable for small section height,or when the housing bore is not used for raceway,this type is recommended to use.The bearing is assembled into the housing bore under a certain pressure without further axial location.

The drawn cup needle roller bearing generally takes its shaft diameter as the internal raceway.However, the proper LR type inner ring can be used in accordance with application condition.

The drawn cup needle roller bearing has two structures-with ratainer and with full of needles.They are divided into open-end type and close-end type.The steucture with retainer has the single seal ring and double seal ring.The structure with full of needles has a large load carrying capacity.

BYM can procide all drawn cup needle roller bearings lister in this catalogue,including standard size andnon-standard metric size,and inch-series as well as the high-precision drawn cup needle roller bearings with special requirements such oil hole in outer ring,double-row needles,uylon retainer,inner ring,seal ring etc.(special technical requirement on order).
